- RD-5G34
- Dimensions: 1050 x 1050 x 421 mm (41.34 x 41.34 x 16.57″)
- Weight: 13.5 kg (29.76 lb)
- Frequency Range: 4.9 – 5.8 GHz
- Gain:
- 4.9 GHz: 30 dBi
- 5 – 5.8 GHz: 34 dBi
- HPOL Beamwidth: 3° (3 dB)
- VPOL Beamwidth: 3° (3 dB)
- F/B Ratio: 42 dB
- Max. VSWR: 1.4:1
- Wind Loading: 1,779 N @ 200 km/h (400 lbf @ 125 mph)
- Wind Survivability: 200 km/h (125 mph)
- Polarization: Dual-Linear
- Cross-pol Isolation: 35 dB Min.
- ETSI Specification: EN 302 326 DN2
- Mounting: Universal Pole Mount, Rocket Bracket, and Weatherproof RF Connectors Included
- RD-5G30
- Dimensions: 650 x 650 x 304 mm (25.6 x 25.6 x 11.97″)
- Weight: 9.8 kg (21.61 lb)
- Frequency Range: 4.9 – 5.8 GHz
- Gain:
- 4.9 GHz: 26 dBi
- 5 – 5.9 GHz: 30 dBi
- HPOL Beamwidth: 5° (3 dB)
- VPOL Beamwidth: 5° (3 dB)
- F/B Ratio: 34 dB
- Max. VSWR: 1.4:1
- Wind Loading: 787 N @ 200 km/h (177 lbf @ 125 mph)
- Wind Survivability: 200 km/h (125 mph)
- Polarization: Dual-Linear
- Cross-pol Isolation: 35 dB Min.
- ETSI Specification: EN 302 326 DN2
- Mounting: Universal Pole Mount, Rocket Bracket, and Weatherproof RF Connectors Included
- Compliance
- NDAA Compliant: Yes

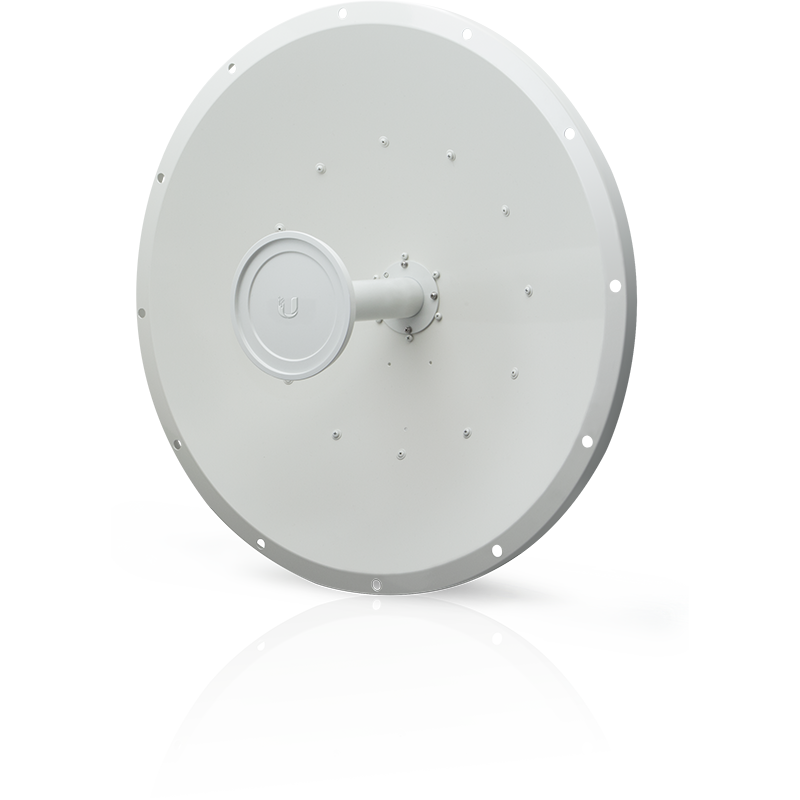

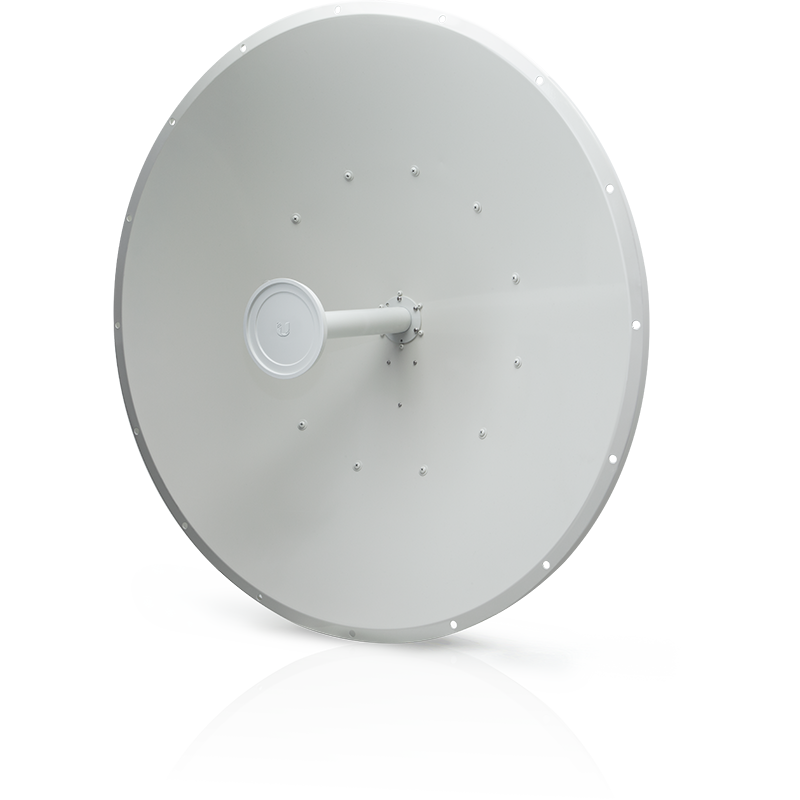

airMAX AC 5 GHz, 30/34 dBi RocketDish (RD-5G34)
5 GHz, 30 dBi or 34 dBi high-performance dish antenna.
Availability: 2 in stock
₹33,500.00
| Weight | 66 kg |
|---|
Only logged in customers who have purchased this product may leave a review.
Reviews
There are no reviews yet.
