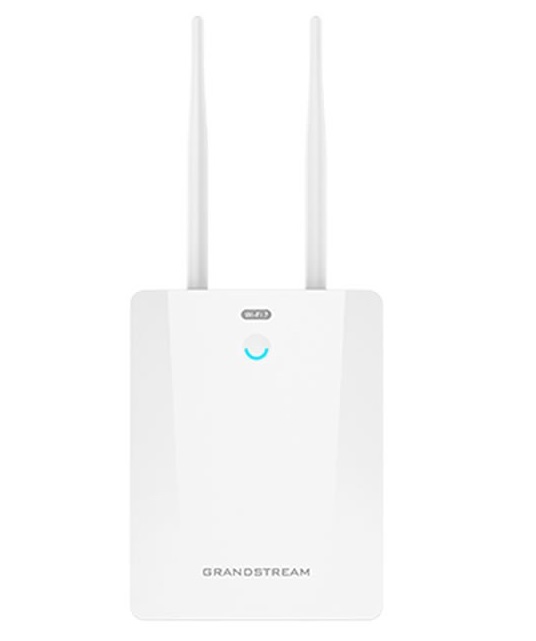

GWN7670ELR

The Grandstream GWN7670ELR is a high-performance outdoor Wi-Fi 7 BE3600 access point designed for medium-to-large businesses. Featuring advanced 2.4 GHz 2×2:2 and 5 GHz 3×3:2 MU-MIMO plus DL/UL OFDMA, it delivers exceptional throughput and range. Boosted by Xtra Range 2.0 on the 5 GHz band, it shatters coverage barriers with enhanced signal penetration for seamless 360-degree connectivity. Its IP67-rated weatherproof design ensures stable operation in harsh outdoor environments. This model offers hybrid management flexibility through its local web UI or cloud-based platforms like GDMS Networking and GWN Manager. The GWN7670ELR delivers robust, long-range Wi-Fi for enterprises, multi-floor offices, warehouses, parks, hospitals, schools, and more.

The GWN7670ELR features 3.6 Gbps aggregate wireless throughput and 2.5 Gbps wired throughput, connecting up to 512 Wi-Fi client devices simultaneously without compromising speed. It delivers reliable connectivity across a vast 350-metre coverage range, supports up to 1,000 PPSK accounts for secure, individualised user access, and integrates Wi-Fi 7 connectivity with dual-band 2.4 GHz 2×2:2 and 5 GHz 3×3:2 MU-MIMO, supporting MLO, 4096-QAM, Multi-RU and preamble puncturing. Its SFP port delivers rock-solid optical transmission across distances of up to 20 km.

Grandstream GWN7670ELR Technical Specifications:

Radio

• Antenna: 5 single-frequency antennas – 2.4 GHz: 2 x 5.5 dBi, 5 GHz: 3 x 6.5 dBi
• MIMO: 2.4 GHz 2×2:2 MU-MIMO, 5 GHz 3×3:2 MU-MIMO
• Frequency Bands: 2.4 GHz 2,400–2,483.5 MHz; 5 GHz 5,150–5,850 MHz (not all bands usable in all regions)
• Channel Bandwidth: 2.4 GHz 20 and 40 MHz; 5 GHz 20, 40, 80 and 160 MHz
• Wi-Fi Data Rates (2.4 GHz): 802.11be up to 688 Mbps, 802.11ax 7.3–573.5 Mbps, 802.11n 6.5–300 Mbps, 802.11g 6–54 Mbps, 802.11b 1–11 Mbps
• Wi-Fi Data Rates (5 GHz): 802.11be up to 2,882 Mbps, 802.11ax 7.3–2,402 Mbps, 802.11ac 6.5–1,732 Mbps, 802.11n 6.5–300 Mbps, 802.11a 6–54 Mbps
• Maximum TX Power: 2.4 GHz 24 dBm; 5 GHz 26 dBm (varies by country, band and MCS rate)
• Coverage Range: Up to 350 m (1,148.29 ft), may vary based on environment

Ports

• Network Ports: 1 x 2.5 GbE RJ45 port (supports PoE input), 1 x SFP port
• Other Ports: 1 x Reset Pinhole, 1 x Kensington Lock

LED

• System LED: 1 tri-colour LED for device tracking and status indication
• 1 green LED for SFP status (supports LC fibre)

Power and Energy

• PoE Standards: 802.3at
• Max Power Consumption: 16 W

Environmental Endurance

• Operating Temperature: -30°C to 60°C (-22°F to 140°F)
• Storage Temperature: -30°C to 70°C (-22°F to 158°F)
• Humidity: 5%–95%, non-condensing
