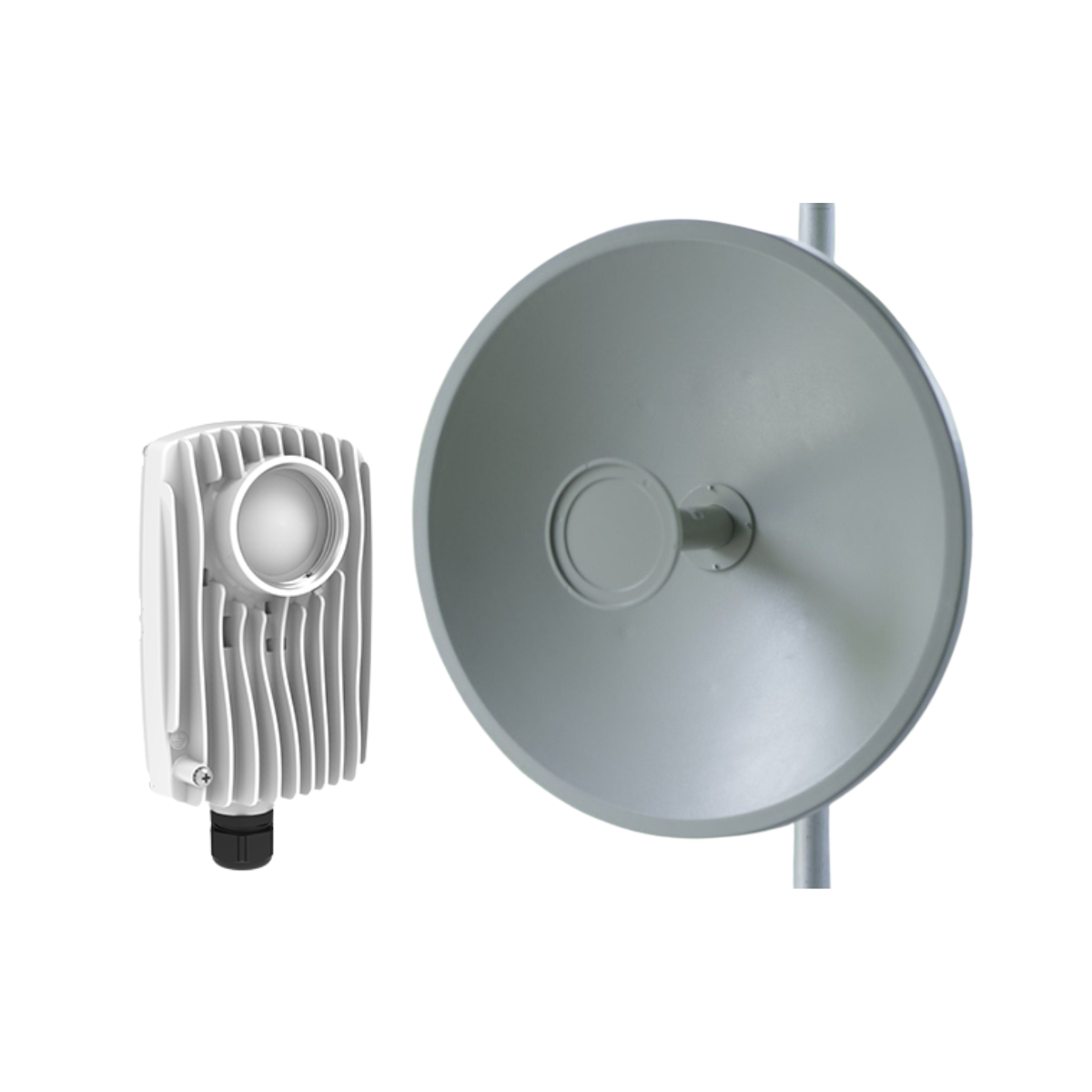

Mimosa C6X+LRA-29M Antenna Full Set

C6x, Mimosa 5.15-6.425GHz 8 dBi Modular Radio for PTMP, 802.11ax Wi-Fi 6E, uses 29m Antennas, PoE Not included

Super Flexible, Super Fast, Super Value Gigabit PTMP Client

Building on the popular X-series family of modular directional antenna options for flexible distance deployments, the new rugged C6x sets a new bar for affordable speed and interference reduction. With the latest in Wi-Fi 6E OFDMA technologies, and access to new 6 GHz bands1, the C6x achieves extremely low latency speeds of up to 1.75 Gbps and high reliability with new noise fighting features. Supporting the Wi-Fi 5/6/6E standards, the C6x can be deployed as a standard Wi-Fi interoperable client, and provide smooth transitioning in the field for legacy Mimosa and standard Wi-Fi deployments. The C6x can be used as a PTMP (point-to-multipoint) client radio.

Integrated Radio with Modular Antenna Options

The C6x radio’s native 8 dBi gain can be increased to 12, 16, 20 or 29 dBi using modular, X-series, twist-on antennas, offering the ease and simplicity of integrated radios, but with so much more flexibility.

Features:

• Gigabit Ethernet: 10/100/1000-BASE-T
• Management Services: MMP support; Netconf (future support); SNMPv2c/v3; Syslog; HTTPS; HTML 5 based Web GUI; IPv4 and IPv6
• Smart Spectrum Management: Active scan monitors/logs ongoing RF interference across all channels (no service impact); Dynamic auto-optimization of channel and bandwidth use
• Security: AES; RADIUS; 802.1x authorization
• QoS: WiFi Interop Mode WMM; SRS mode supports 4 user configurable QoS levels supporting both CBWFQ and PQ
• VLAN: Q-in-Q, double tagging, management VLAN, PTMP per client VLAN
  2. Optitera Long Range Dish Antenna
  LRA Series Modular 29 dBi
  As a fundamental part of a wireless communication system, the Antenna is a device that converts the RF signal to an equivalent electromagnetic wave for transmitting into & receiving from free space.
  Radio wave communication need stransmitting as well as Receiving Antennas. It acts as a transducer that converts an RF signal into an EM wave at the transmitter and an EM wave back to an electrical signal at the receiver. Various Electrical and mechanical parameters are there which determines the use of the Antenna in a wireless PTP or PMP communication setup.
