The N5-X30kp is a versatile 2-pack MIMO dish antenna, operating in the 4.9-6.4 GHz frequency range.
Designed for Mimosa X Series products, it features twist-on adapters for radio heads, 30 dB port-to-port isolation, and a 35 dB front-to-back ratio.
With collapsible design for easy transport and quick installation, this 2-foot dish antenna has 50 Ohms impedance, 50Watts maximum input power, and operates between -40 to 70 °C. Constructed with an aluminum base, DC grounded for lightning protection, it has a 5-degree horizontal and vertical HPBW.
The N5-X30kp supports vertical/horizontal or ±45 degree slant polarization, is reliable, rugged, and suitable for various applications, including enterprise, industrial,
telecom operators, radio OEMs, backhaul engineers, and network deployment.

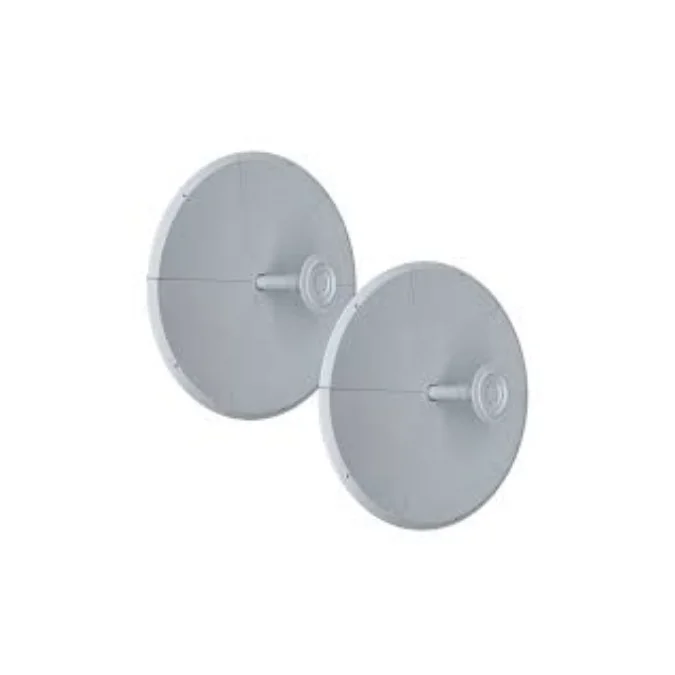

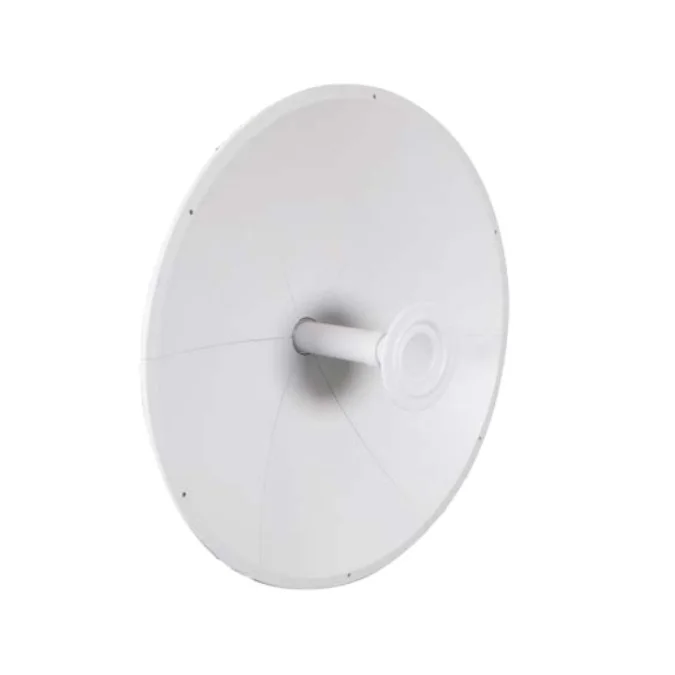

Mimosa N5-X30-2 Pack
Introducing the N5-X30kp Antenna
Mimosa’s latest modular N5-X antenna providing the ultimate
flexibility for PTP and PTMP extended frequency operation.

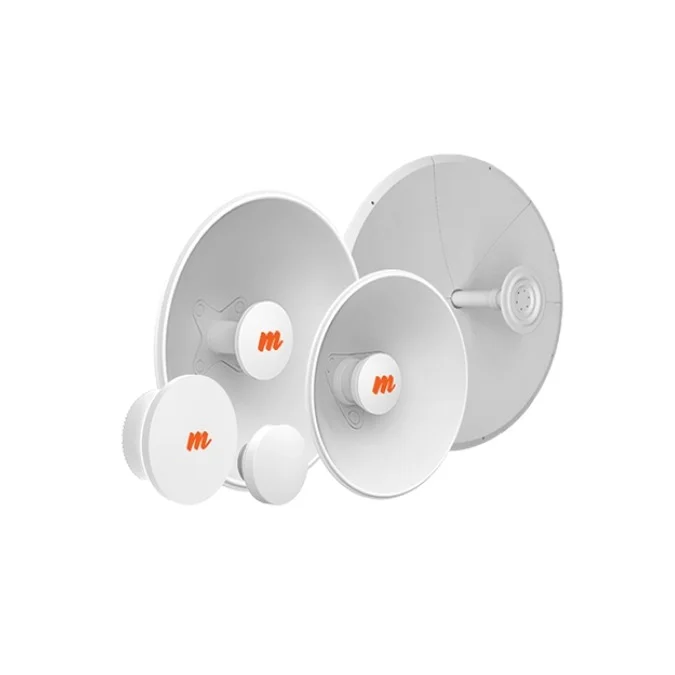

The Mimosa’s X-Series of products are the industry’s most versatile, modular, radio solutions with six gain.
options (8, 12, 16, 20, 25, or 30 dBi). The ultra-rugged solution provides extended frequency operation from 4.9–6.4 GHz, with best-in-class noise immunity.
Availability: 10 in stock
₹28,175.00
| Weight | 14 kg |
|---|
